Blown tube opener slitting blades


Blown tube opener slitting blades for cutting open blown film

  • for blown film
  • version: universal
  • guide rollers with ball bearings
  • magnetic blade holder with protection against accidental contact
  • air supply 1/8"
  • lateral air nozzles (6 pcs.) for raising the film
  • mounting holes
  • industrial blades 43x22 (+/- 0.3 mm) x 0.3 mm
  • blade change during production possible without stopping the web
  • material: AlZnMgCu 1.5
  • with KEPLA-COAT white/black
  • special coating post-compacted

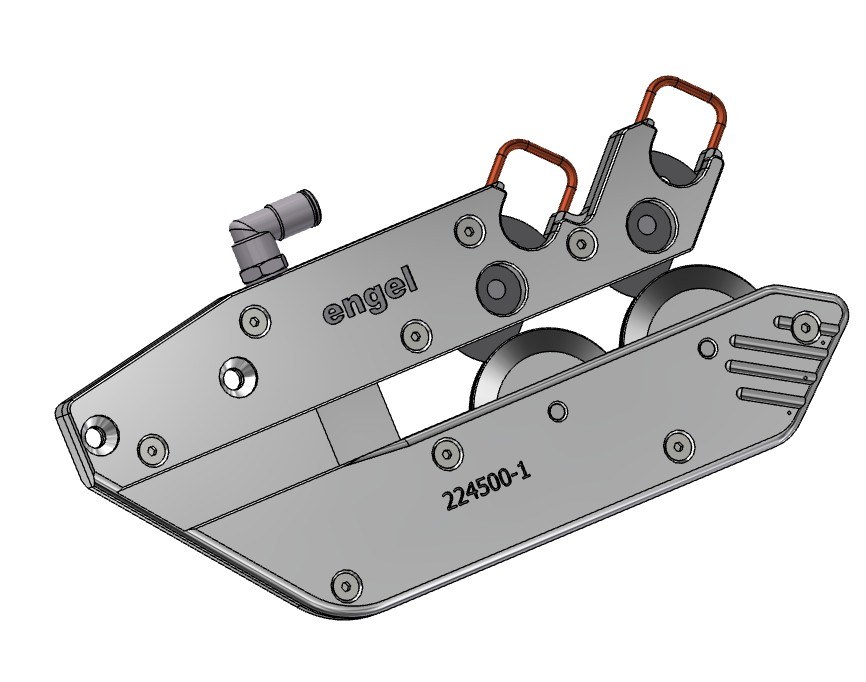

224500-1
Double blade blown tube slitting device, 73697/E01

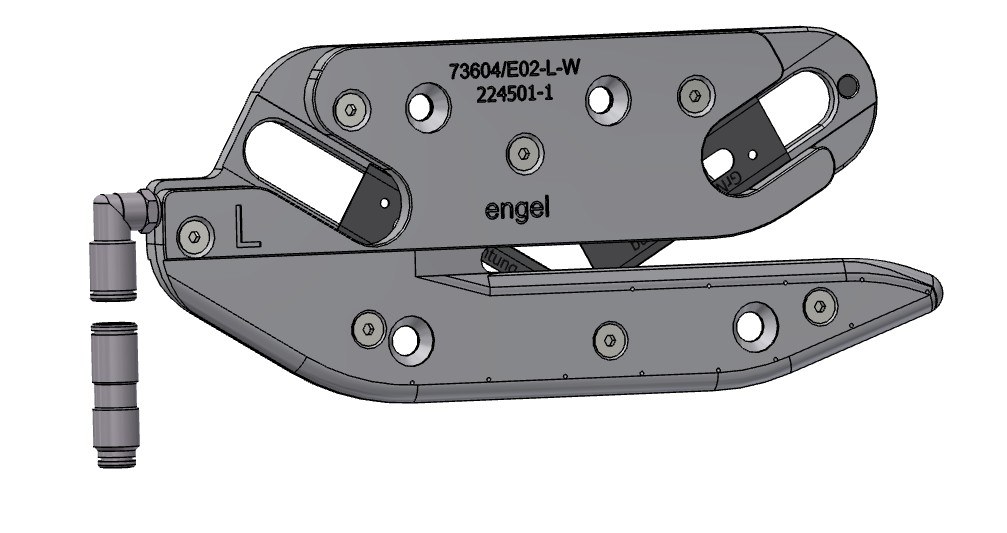

224501-1
Double blade blown tube slitting device, 73604/E02-L-W

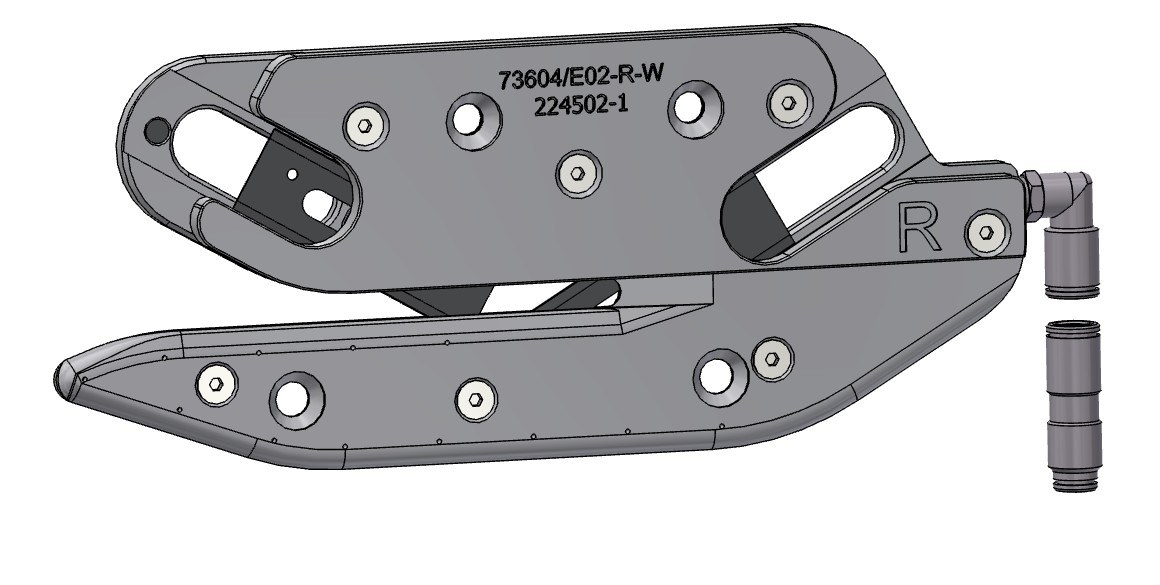

224502-1
Double blade blown tube slitting device, 73604/E02-R-W
224504-1
Double blade blown tube slitting device, 73604/E02-L-S
224503-1
Double blade blown tube slitting device, 73604/E02-R-S
