Industrial Blade Holders


Industrial Blade Holders for Longitudinal Cutting

  • standard commercial industrial blades 43x22x0.15mm, 0.20mm, 0.3mm or 0.4mm thick
  • also available in special versions for ceramic blades
  • the industrial blade is held in the cutting position by spring pressure
  • blade holder with magnet
  • blade holder with flat round pliers
  • blades fully covered in the rest position (maximum safety)
  • simple adjustment without tools, by releasing a clamping lever
  • when multiple holders are placed side by side, stepless cut width adjustment is possible from approx. 15 mm
  • the blade holder can be installed and removed at any point without dismounting the carrier shaft

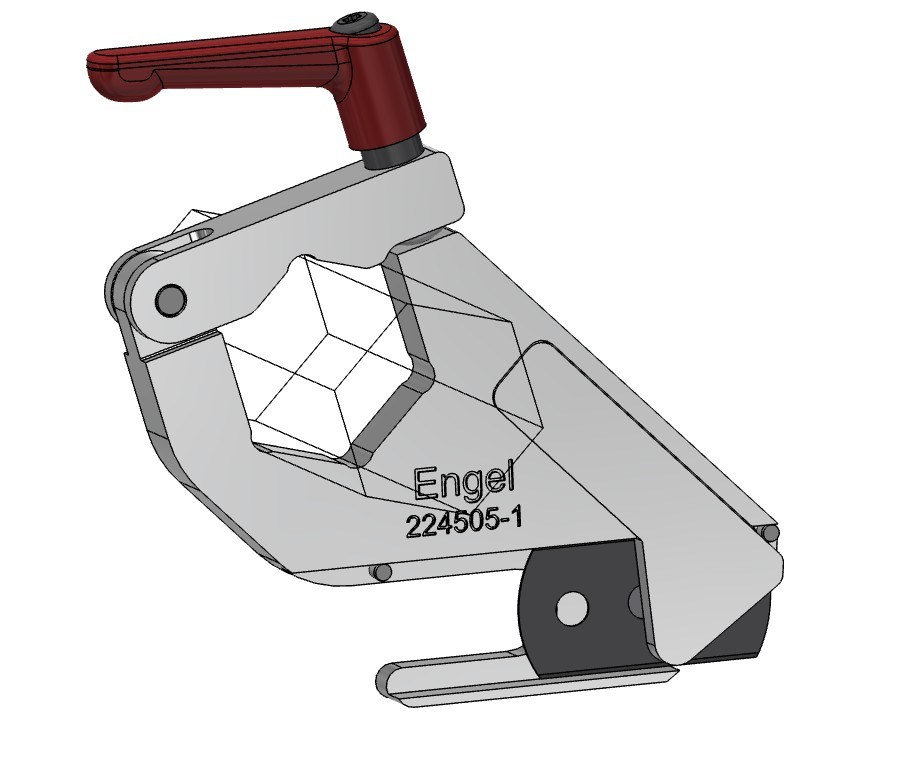

224505-1
Blade holder, 2-part, SW32
224505-2
Blade holder, 2-part, SW30
224505-3
Blade holder, 2-part, R32
224505-4
Blade holder, 2-part, R30

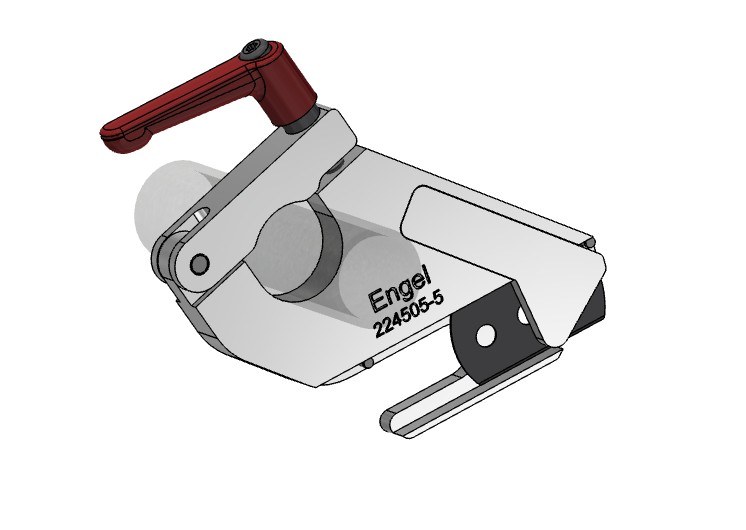

224505-5
Blade holder, 2-part, SW1-Zoll
